M177 C63 GLC63 AMG GT Exhaust Manifold

In stock and ready to ship. Cerakote adds 1 week additional lead time

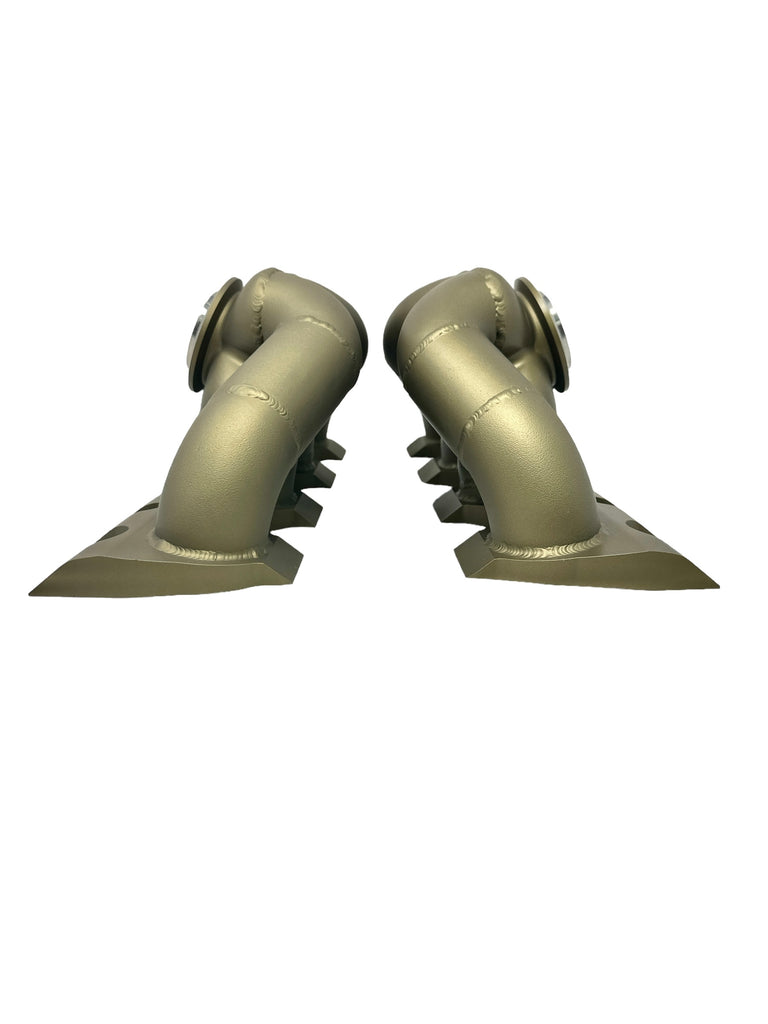

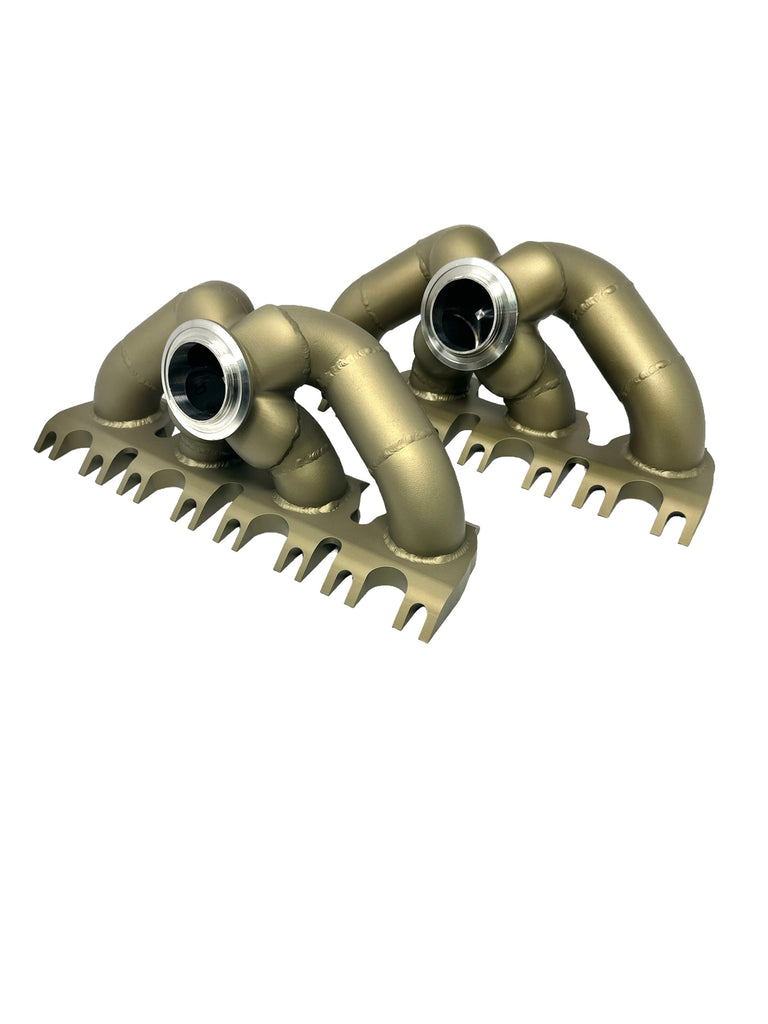

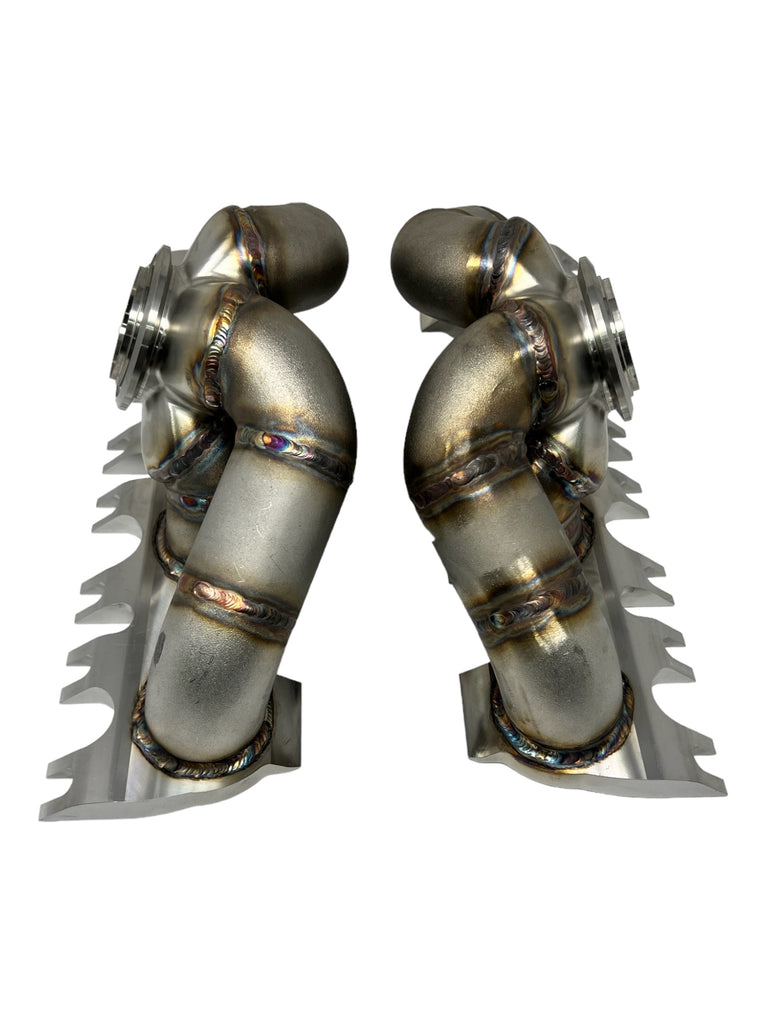

Modalworks is proud to present our 100% made-in-America exhaust manifold for the M177 LS1 turbocharged engines. Using our billet CNC turbo collector and header flange, we optimized exhaust gas flow exiting the head and into the turbocharger.

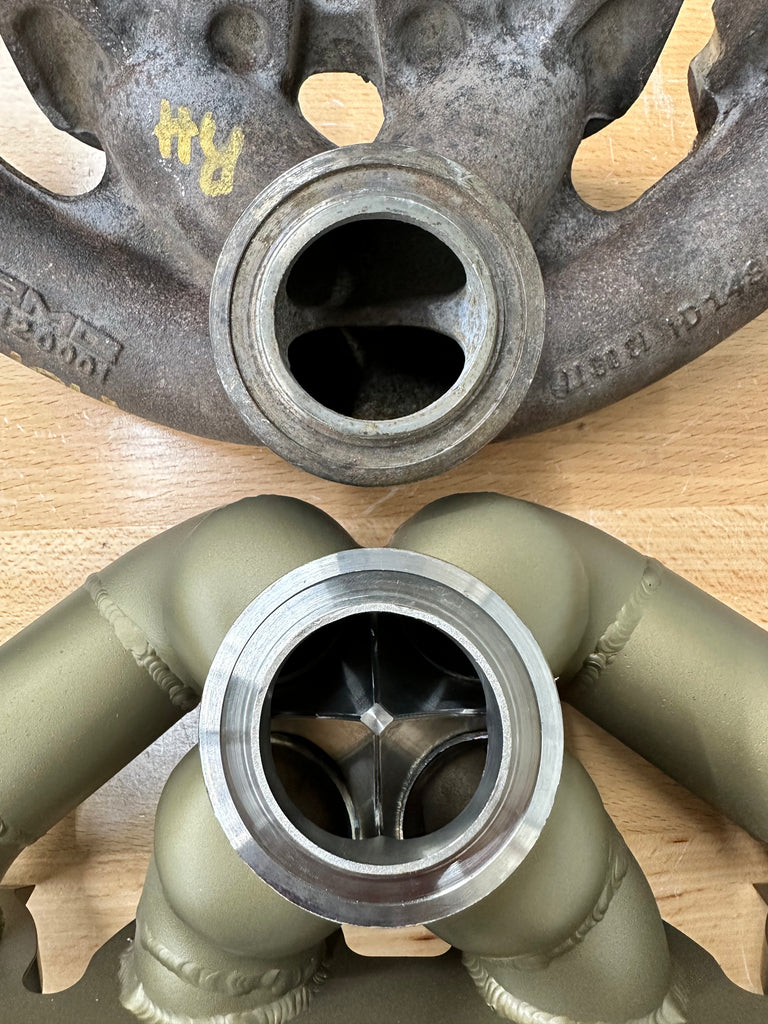

All runners have over a 20% increase in area which aids in exhaust gas clearance from the cylinders. This produces more fresh air per combustion stroke, providing more power under the most demanding conditions. On top of that, our billet collector was detailed with computational fluid dynamics (CFD) to provide an optimal flow path while maximizing the area entering the turbo, which is now 25% larger than the factory unit,

We are seeing consistent improvement in the turbo spool, reducing the time to reach the target by 400-800rpm.  It also changes the exhaust note to have more punch.

THE CERAKOTE OPTION ADDS 1-2 WEEKS ADDITONAL LEAD TIME

• 304ss 5-axis Billet CNC turbocharger collector
• 304ss 4-axis Billet CNC head flange
• 25% larger collector turbo entry
• Improved turbo spool by 400-800 rpm
• Made in America
• Cerakote thermal barrier included
• Improved exhaust note

Vehicle Applications:

Notes:

Due to the size of this product, the OEM turbo manifold heat shield cannot be installed without modification. We have supplied these with cerakote for insulation on the exhaust. You can cut your OEM shield to fit.
