M276 Performance Intake System

Out of stock

Key Features:

The M276 C43 Performance Intake System when combined with aftermarket tuning yields an IAT reduction of 7-10°F compared to the stock airbox when utilizing the full enclosure option. 60mph-130mph times can be reduced by up to 1 second, and up to 2psi of increased boost pressure is delivered. Engineered from 2x2 carbon fiber with high temperature resin and coating, the system is outfitted with anodized billet aluminum flanges and MAP port adapters, with convenient wire harness extenders included. Install in minutes with hand tools.

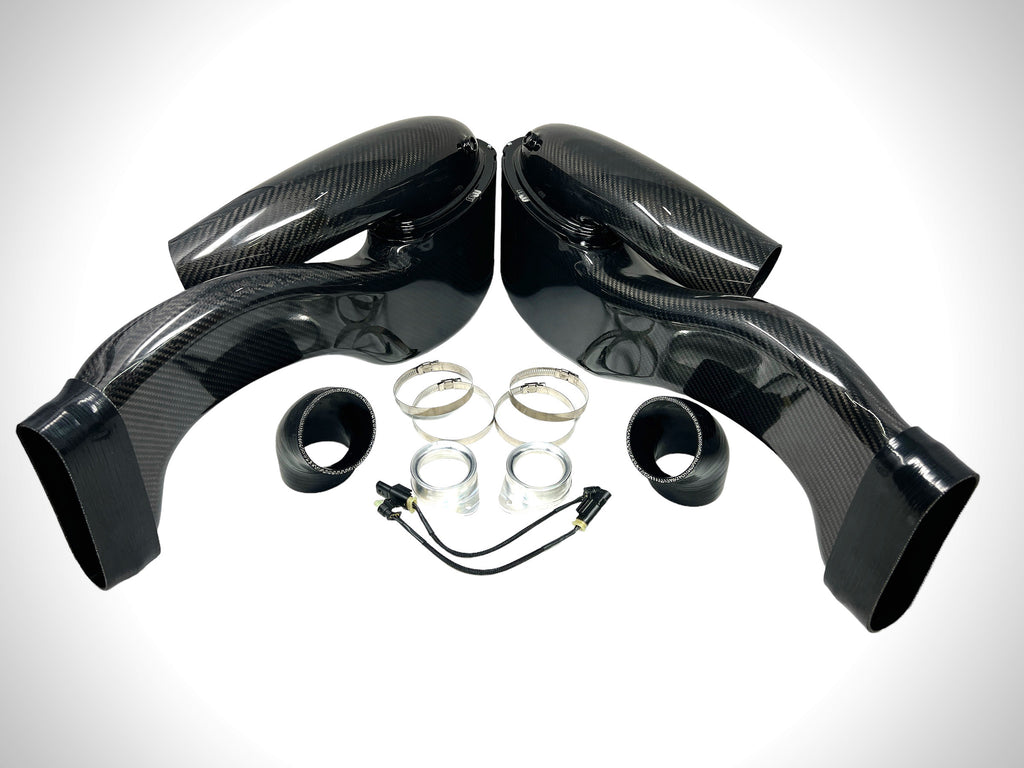

Each Kit Includes:

2x filters

2x intake tube(filter to turbo)

2x billet aluminum turbo mounted velocity stacks

2x 4 ply silicone coupler for thermal barrier protection

2x MAP sensor harness extenders

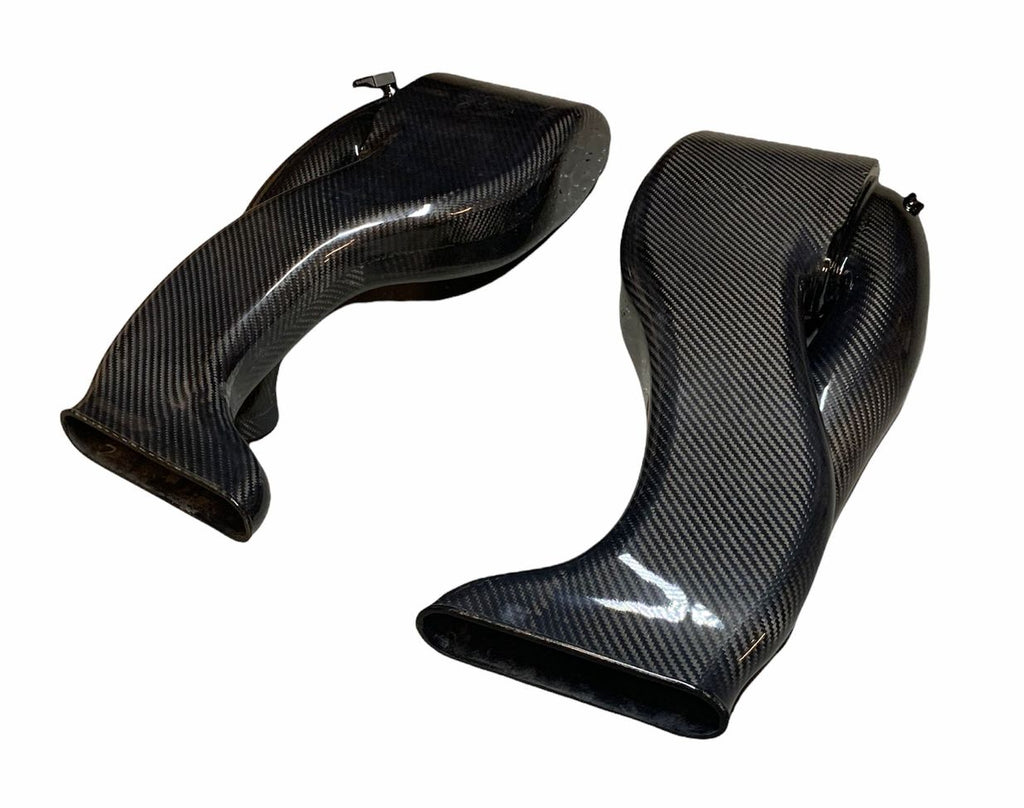

Optional for the fully enclosed kit: 2x filter enclosure tubes (from the front of the car to the filter) with inlet silicone couplers

Vehicle Fitment:

Select the appropriate fitment option from the Intake Style selection bar. The "No Enclosure" option fits all M276 vehicles shown below. The fully enclosed kit currently fits the C-Class and E-Class models.  If you would like a fully enclosed intake and don't see your vehicle listed please contact us to be a tester for your platform.


2014 C400 BASE (W205)
2015 C400 BASE (W205)
2016 C450 BASE (W205)
2016 C43 AMG BASE (W205)
2017 C43 AMG BASE (W205)
2018 C43 AMG BASE (W205)
2019 C43 AMG BASE (W205)
2020 C43 AMG BASE (W205)
2015 CLS400 BASE (W218)
2016 CLS400 BASE (W218)
2019 CLS450 BASE (C257)
2020 CLS450 BASE (C257)
2016 E400 BASE (W213)
2017 E400 BASE (W213)
2018 E400 BASE (W213)
2017 E43 AMG BASE (W213)
2018 E43 AMG BASE (W213)
2019 E43 AMG BASE (W213)
2020 E43 AMG BASE (W213)
2015 GL450 BASE (X166)
2016 GL450 BASE (X166)
2017 GLC43 AMG BASE (X253)
2018 GLC43 AMG BASE (X253)
2019 GLC43 AMG BASE (X253)
2020 GLC43 AMG BASE (X253)
2016 GLE400 BASE (W166)
2017 GLE400 BASE (W166)
2018 GLE43 AMG BASE (W166)
2019 GLE43 AMG BASE (W166)
2020 GLE43 AMG BASE (W166)
2016 GLE450 COUPE COUPE (C292)
2017 GLS400 BASE (X166)
2017 GLS450 BASE (X166)
2018 GLS450 BASE (X166)
2019 GLS450 BASE (X166)
2020 GLS450 BASE (X167)
2018 S450 BASE (W222)
2019 S450 BASE (W222)
2020 S450 BASE (W222)
2015 SL400 BASE (R231)
2016 SL400 BASE (R231)
2017 SL450 BASE (R231)
2018 SL450 BASE (R231)
2019 SL450 BASE (R231)
2017 SLC43 AMG BASE (R172)
2018 SLC43 AMG BASE (R172)
2019 SLC43 AMG BASE (R172)
2020 SLC43 AMG BASE (R172)


 Installation Instructions:

Installation Instructions: Here

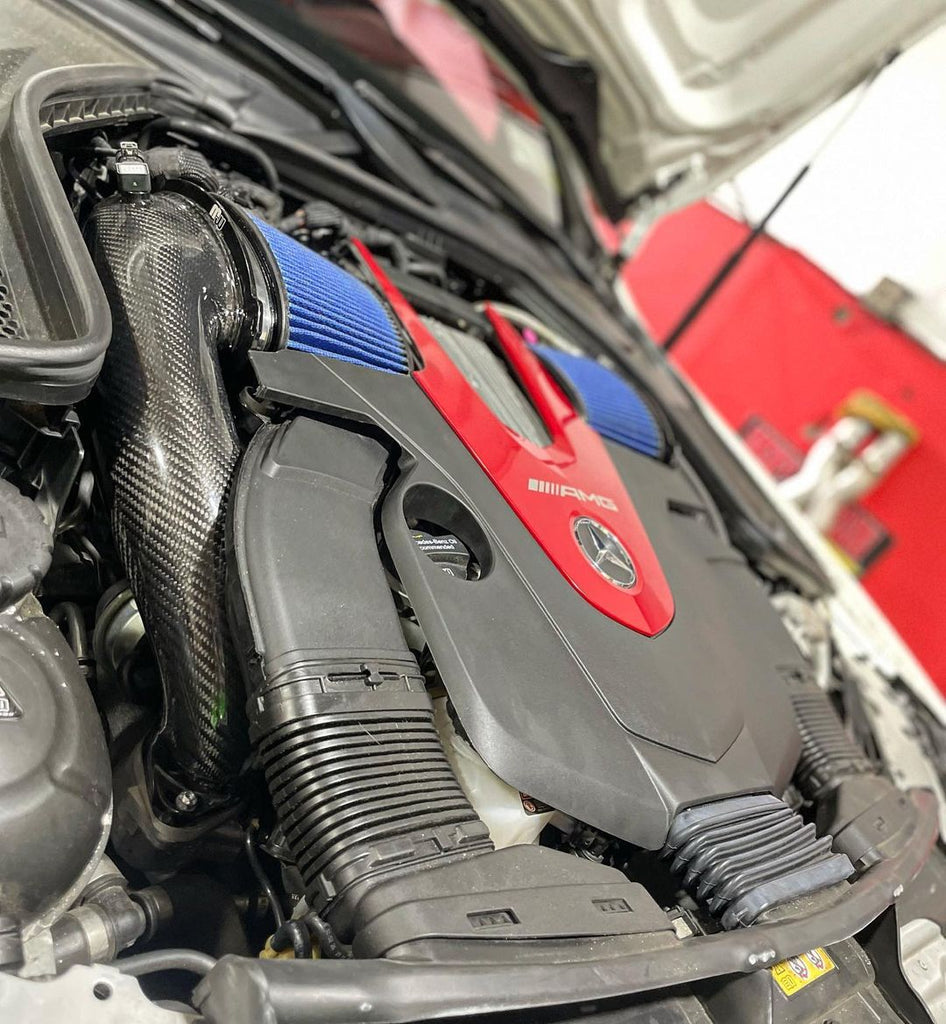

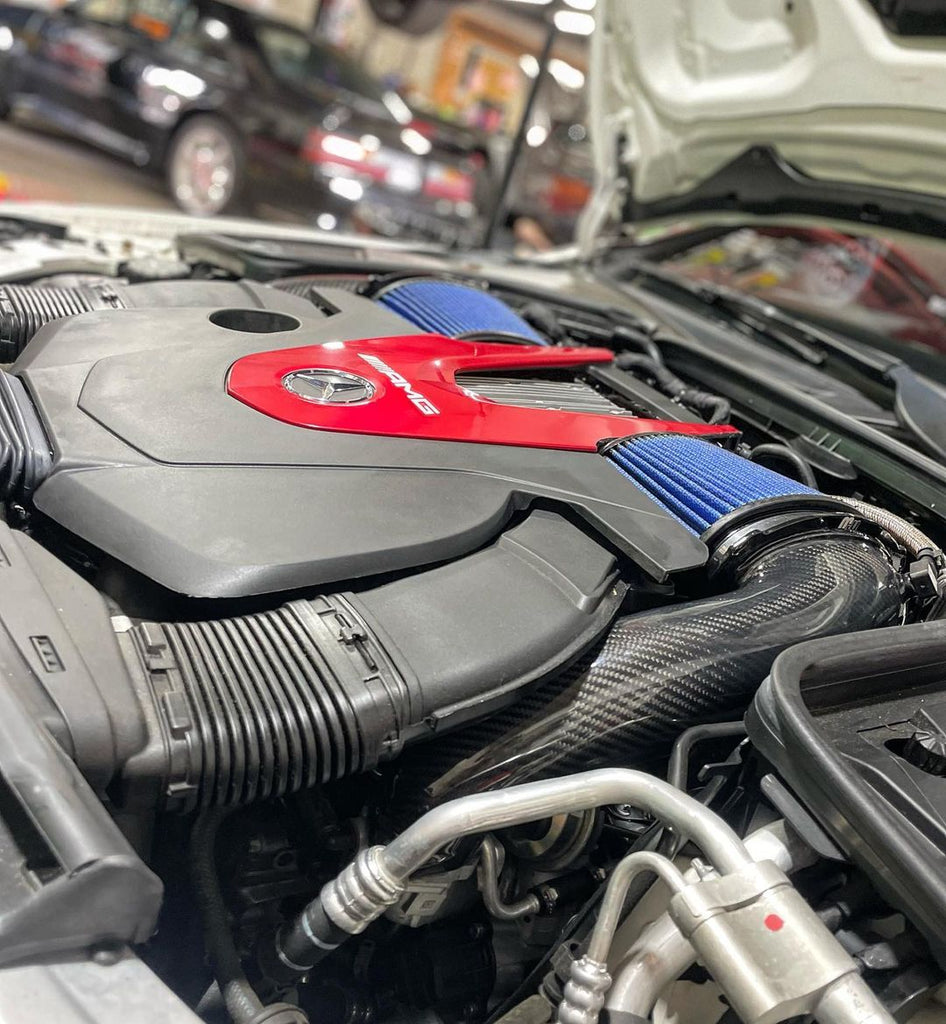

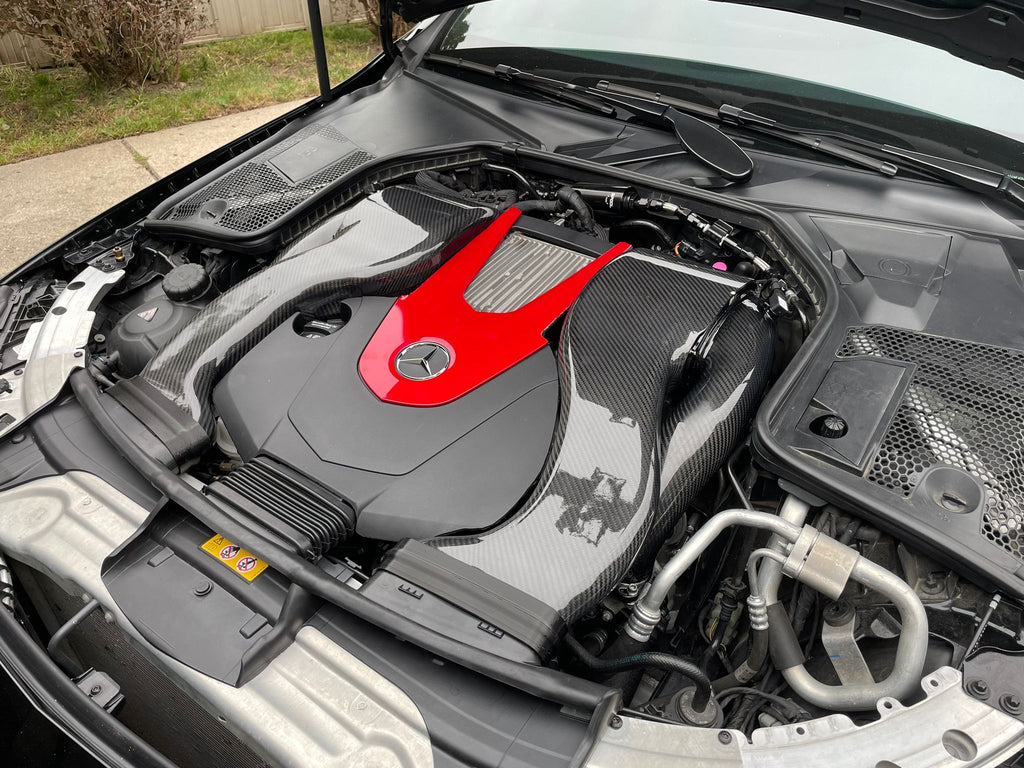

This intake system is constructed of 2x2 carbon fiber prepreg with high temperature resistance resin and coating. Additionally, the MAP sensor insert and tube connection pieces are made from Aluminum 6061 with black anodization for a stealthy look that won’t deteriorate over time. To round it out, there are custom silicone couplers that connect to the OEM air baffle at the front of the engine bay.

Side by side comparisons of stock vs ModalWorks intake show reduced IAT with more flow and more boost. That’s right, by removing excess restriction in the intake track, the turbos can breathe better, resulting in a better pressure ratio yielding more boost to your engine.

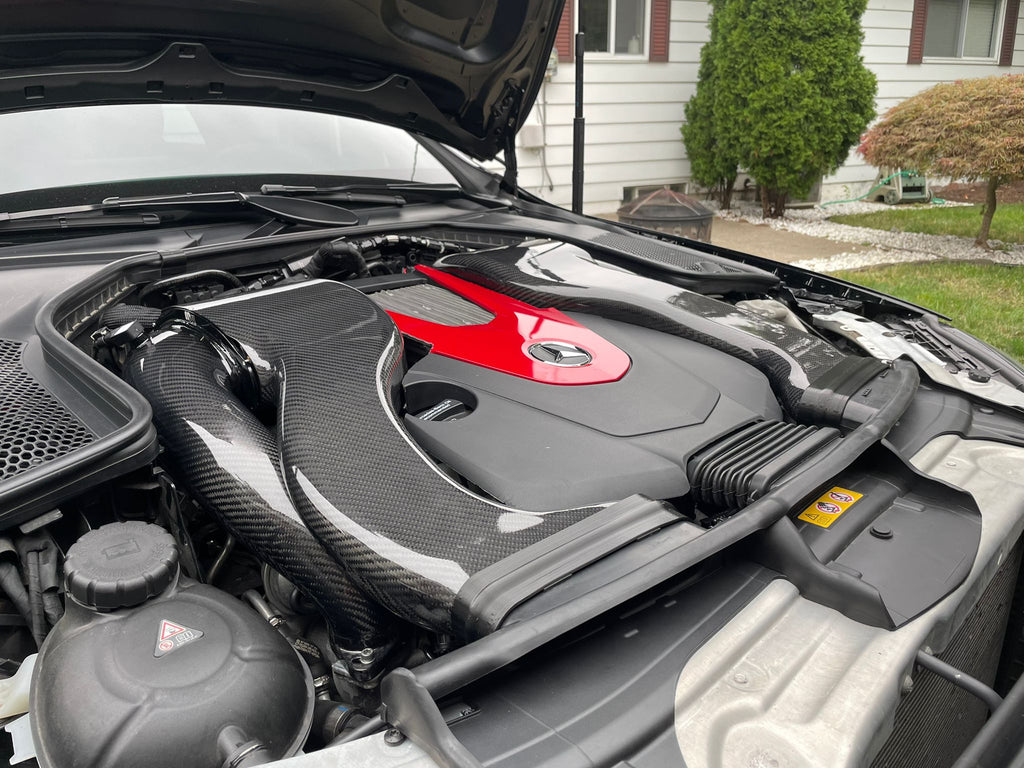

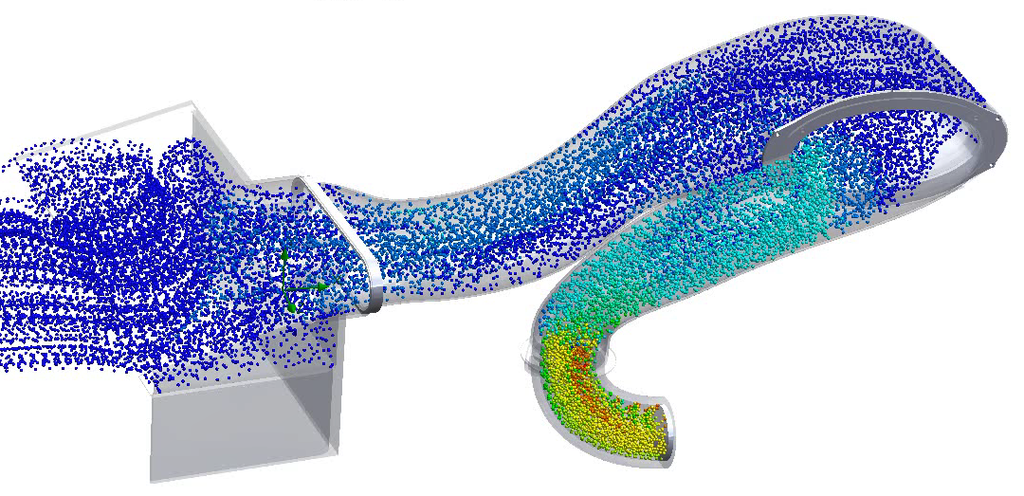

We often hear about the CFD company XYZ did, but it is clear that the design does not match what an optimal flow path would look like. There's an old saying, "garbage in is garbage out"... if the simulation analyst doesn't know what they are doing, the results are more or less useless. At ModalWorks, we have simulation experts on staff that knows how to properly use CFD to drive design improvements. The intake path on this unit went through numerous iterations to improve flow rate, reduce restrictions, and mitigate re-circulation within the intake system. Our results show that in this engine bay, it is possible to have a fully enclosed system that makes tons of power. The air intake path is completely enclosed to block all the hot radiant air that plagues so other designs.


All testing was performed on a stage 2 vehicle as this creates significant demand on the air intake system. OEM tuned cars will not see as much of an improvement.

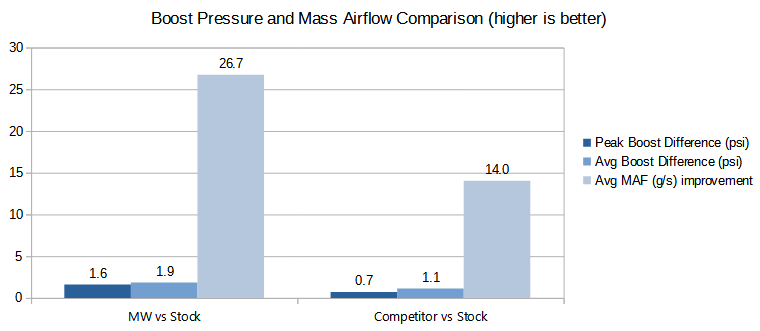

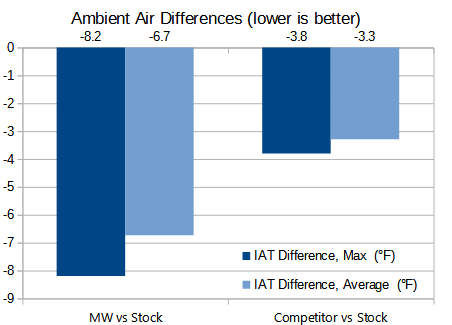

Multiple data logs comparing our design against stock and a competitor air intake paint a pretty compelling picture. This design provides cooler air with a higher mass flow rate, resulting in more power. We went through multiple 60-130mph runs in 66°F weather and averaged results to determine the following:

-Reduced IAT 8°F lower than stock with the full enclosure option

-Increase Boost pressure by 2psi over stock across entire 60-130mph runs

-Improved mass airflow leading to substantial power increase

Increased boost pressure combined with lower IAT yields significant improvement in mass airflow, which is proportional to power. The MW intake nearly doubles the performance gains against other aftermarket brands.

Dragy Results:

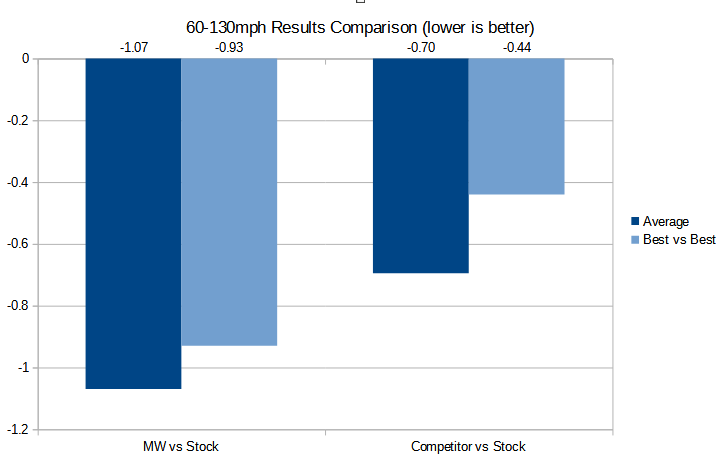

Dyno numbers are one thing but putting that power to the road is where it really matters. 60-130mph tests were conducted to compare the ModalWorks, OEM and a competitor product. All tests were done on the same day with the same weather. Comparing the average of 4 runs we obtained just over a 1s improvement over stock. Note, the competitor product went first on a fresh/cold engine and put down its best time on the first pull, every subsequent pull was slower. Additionally, the MW unit was tested after the competition, after things were already warmed up. Comparing the absolute best runs, we shaved off 0.93s from the stock intake while the competition shaved off 0.44s. All testing was done with our full enclosure option.

Stock Intake Dragy

Competitor Intake Dragy

ModalWorks Intake Dragy
